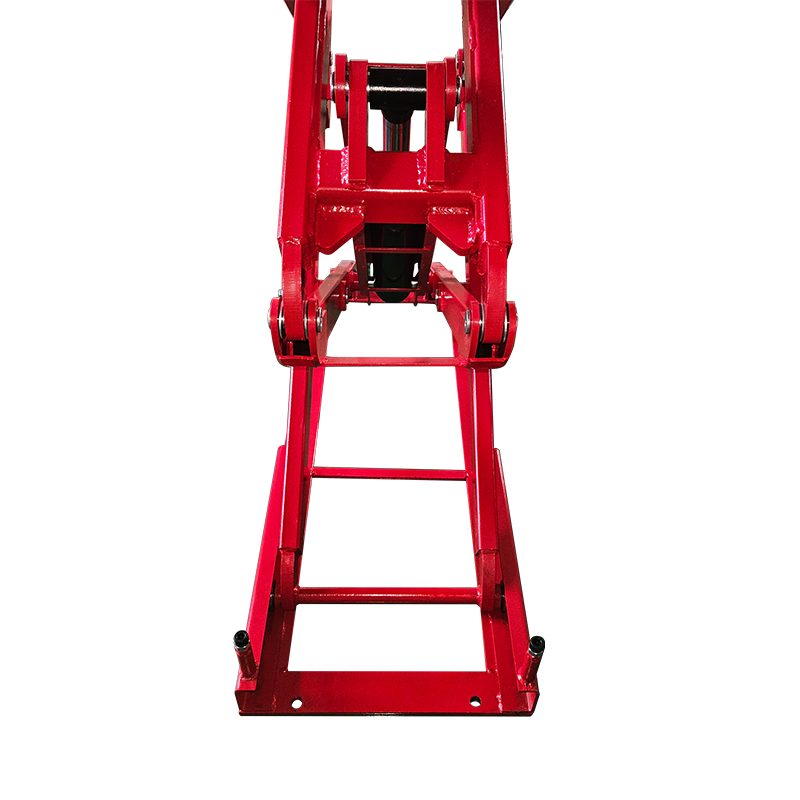

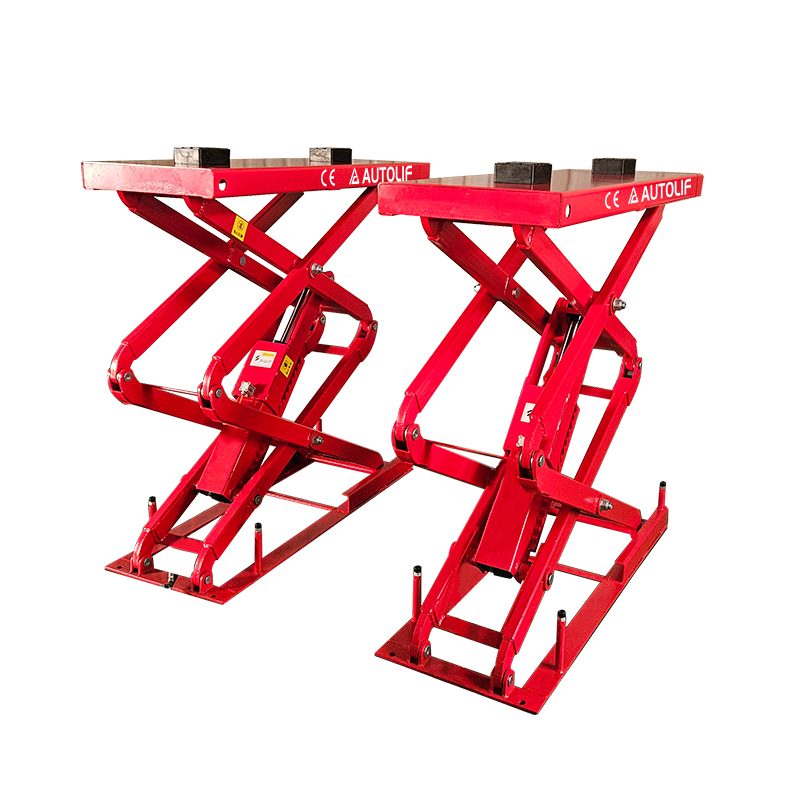

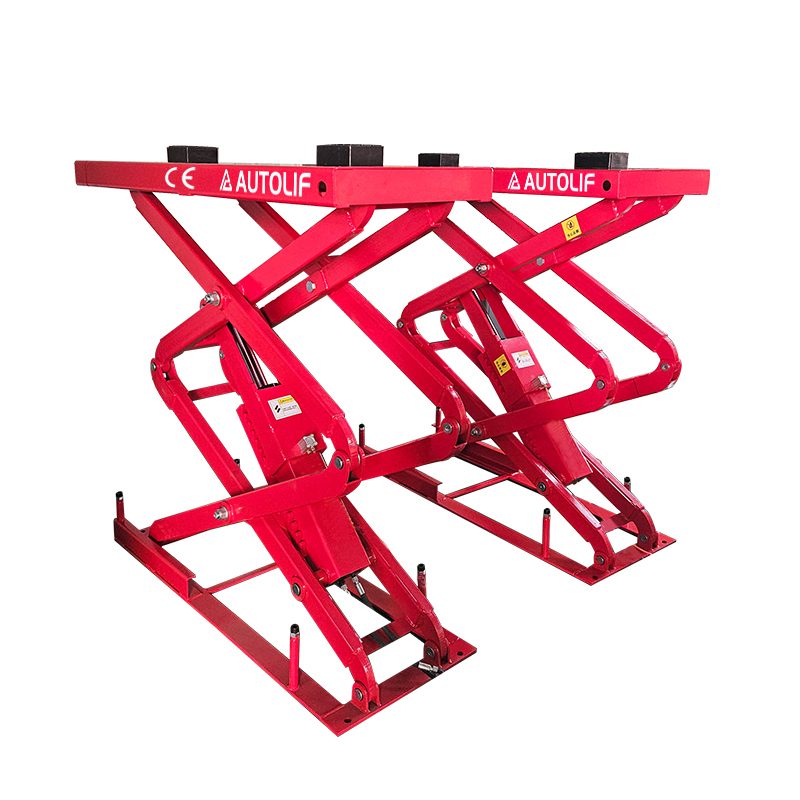

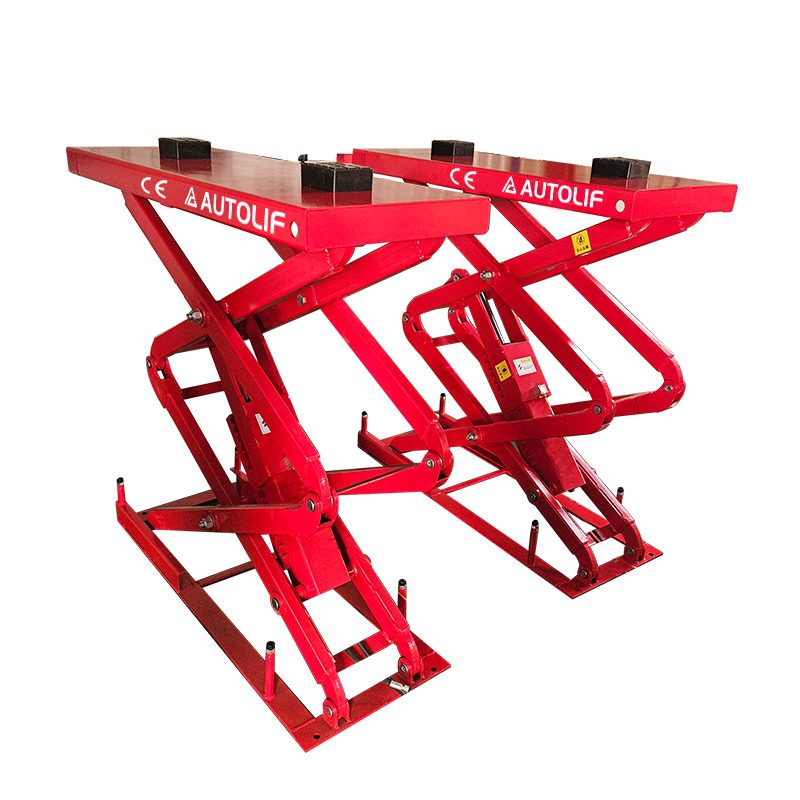

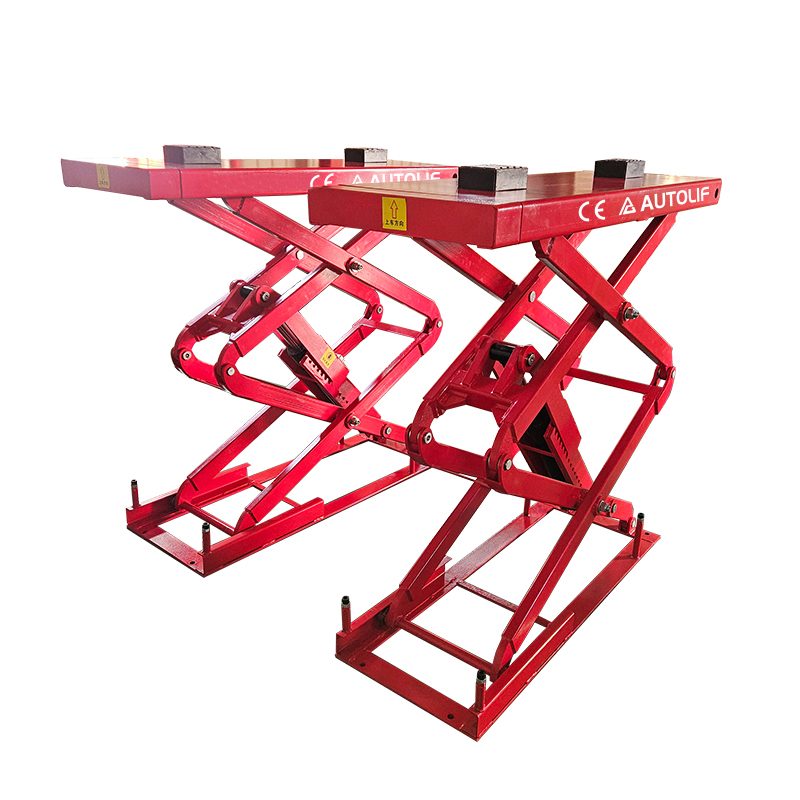

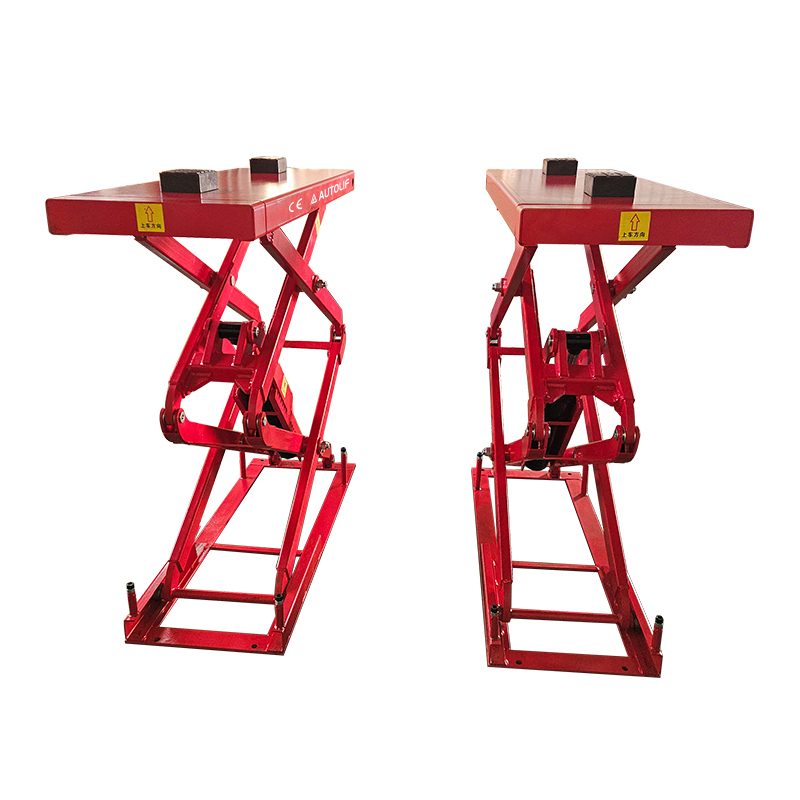

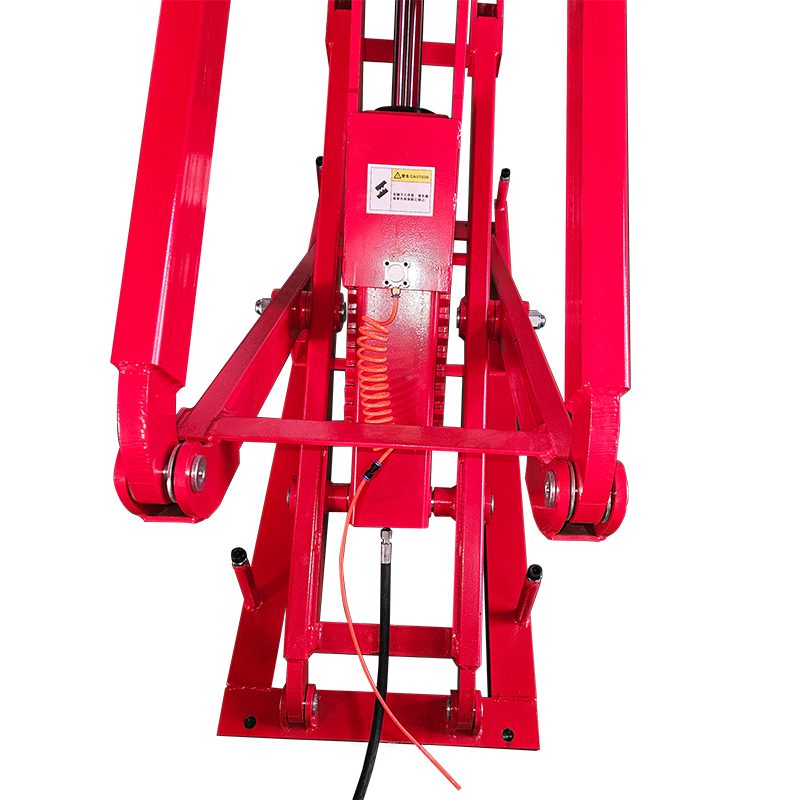

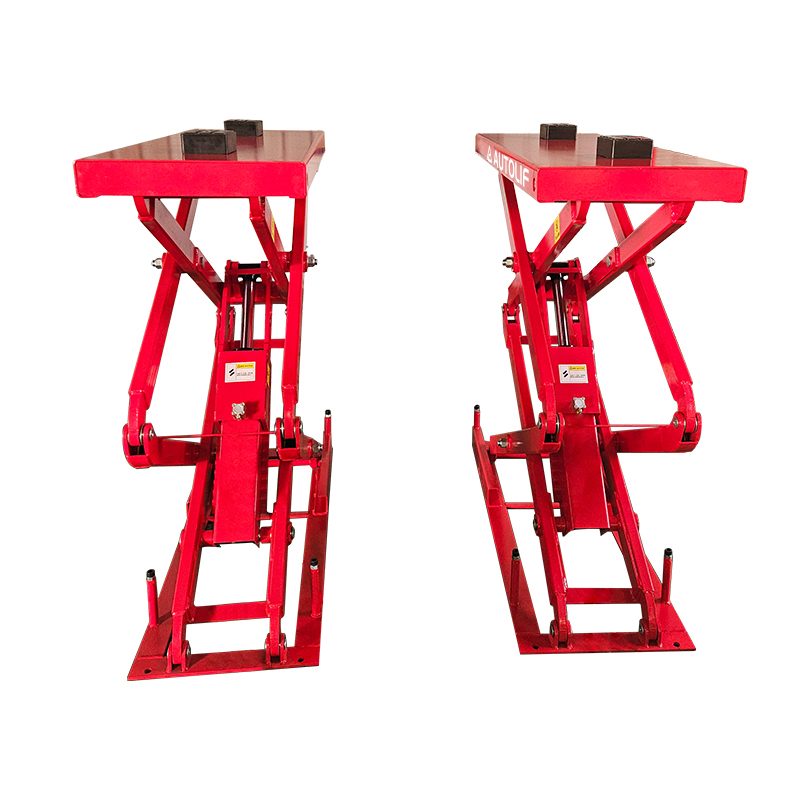

3,500 kg (7,700 lb) inground scissor lift with extendable platforms — a low-profile bay solution for alignment and general service work.
Reply within 1 working day · OEM & ODM available
Rated lifting force of 3,500 kg (7,700 lb) for daily commercial use.
Platforms can be extended to suit different vehicle lengths.
Designed for long service life.
Whole machine finished with powder coating.
Pneumatic release safety locking system.
Design details: Safety lock teeth · Oil filler port · Extendable platform · Wear-resistant sliders
| Lifting height | 2010 mm |
|---|---|
| Platform width | 550 mm |
| Lifting time | 55 s |
| Motor voltage | 220 / 380 V |
| Motor power | 2.2 kW (3 hp) |
| Rated lifting force | 3,500 kg (7,700 lb) |
| Platform length | 1580 - 1,810 mm |
| Initial height | 300 mm |
Specifications are subject to change without notice. Contact us for the latest datasheet and certification documents.
