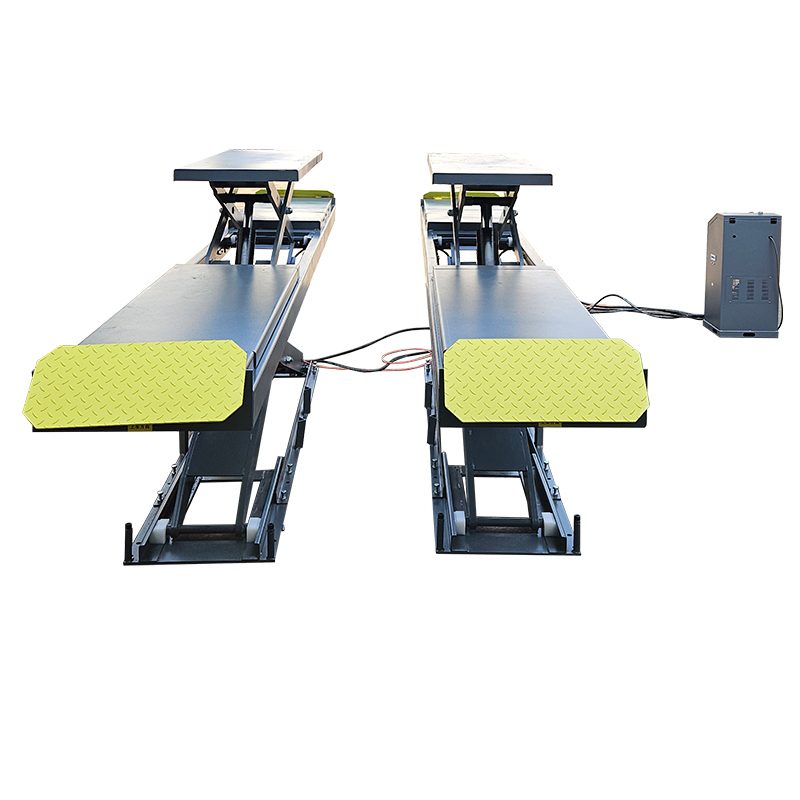

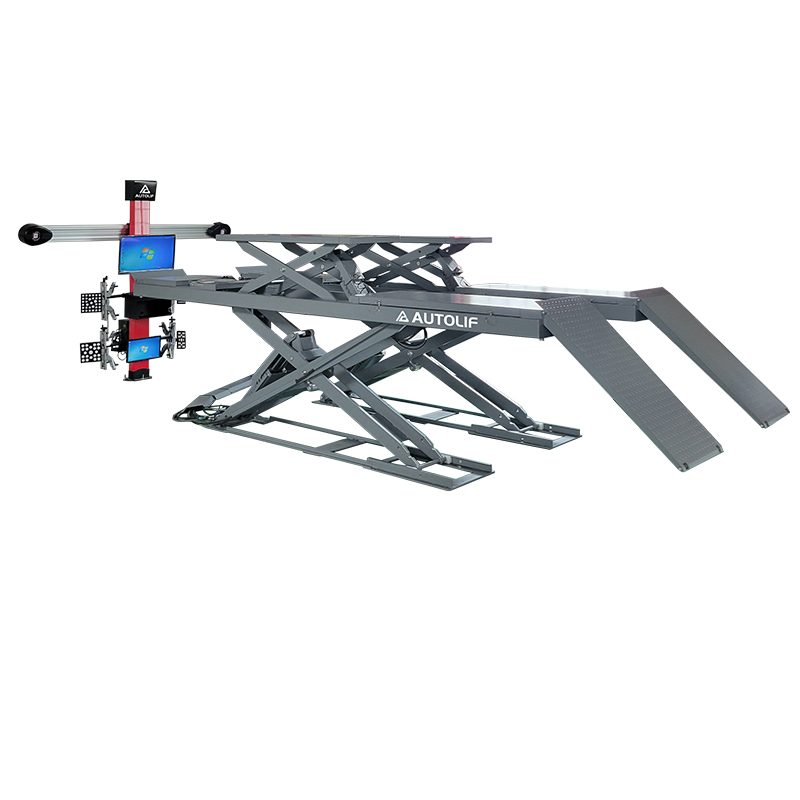

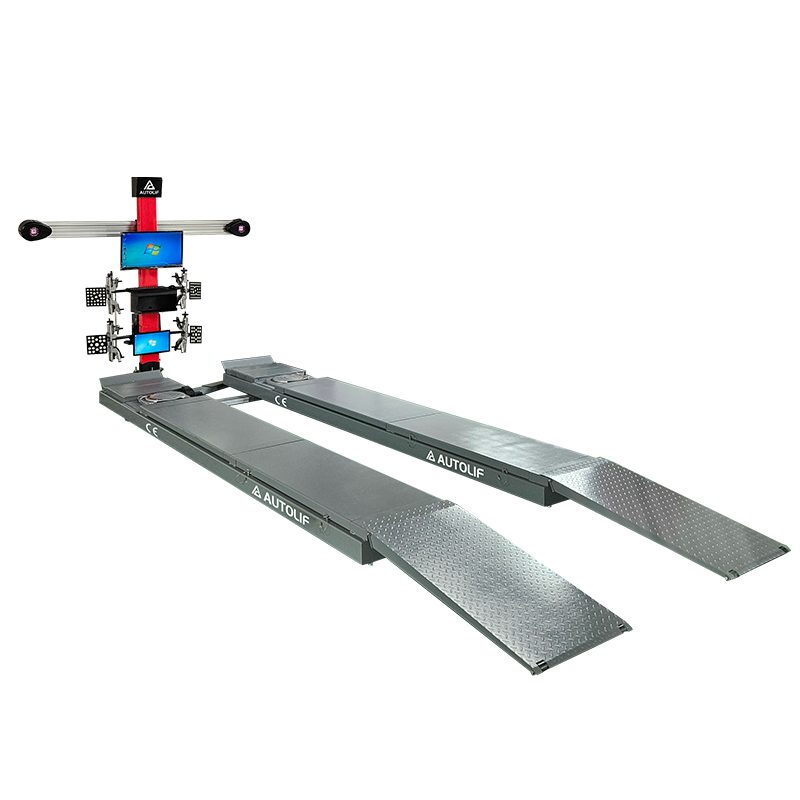

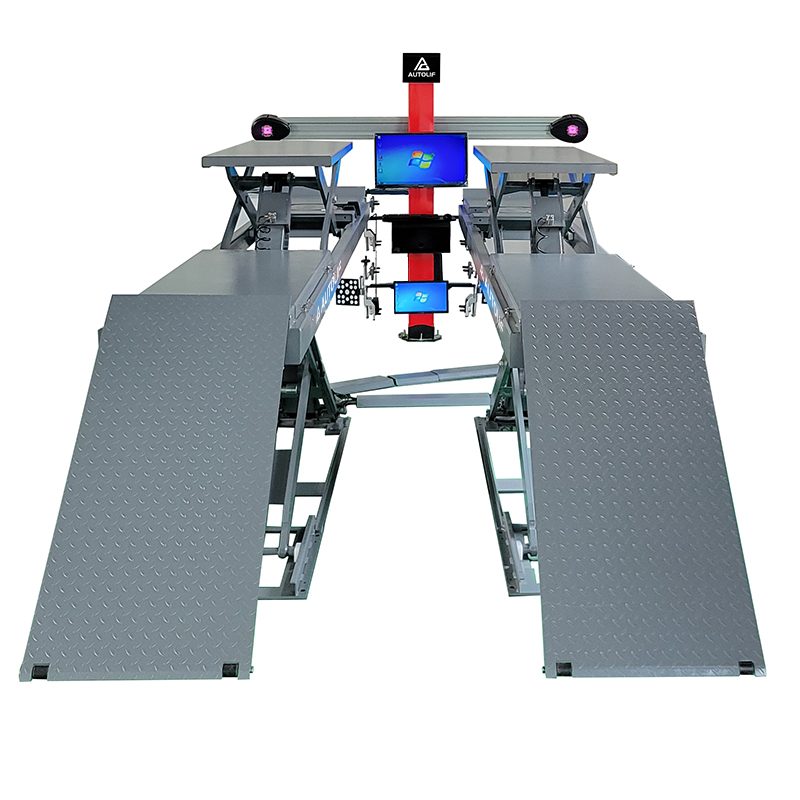

Combined inground scissor lift with a 4,500 mm main platform and a separate sub-platform — built for wheel alignment bays.
Reply within 1 working day · OEM & ODM available
Main platform rated at 4,000 kg (8,800 lb), sub-platform at 3,500 kg (7,700 lb).

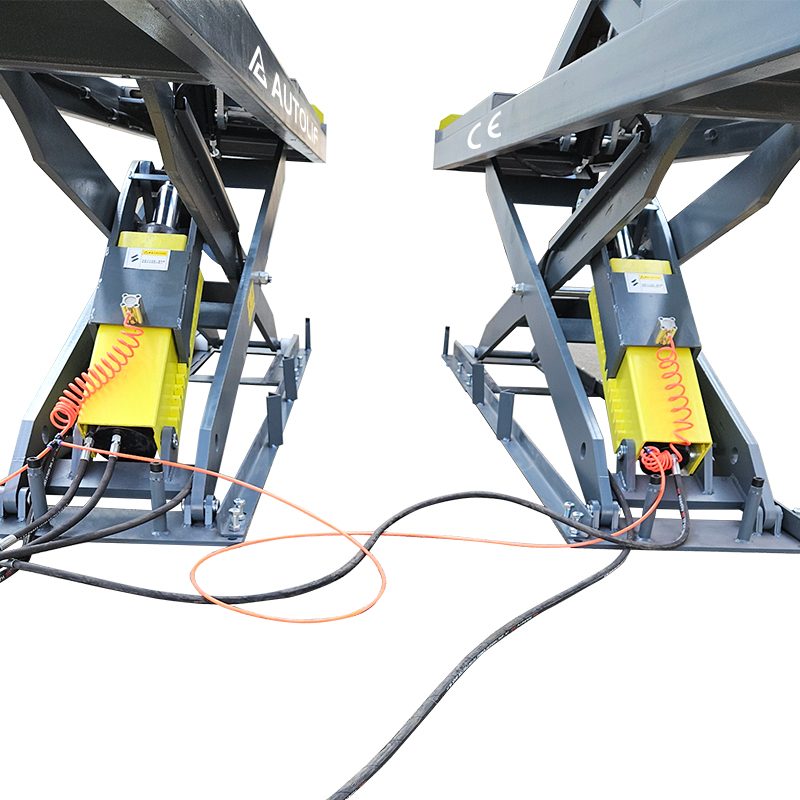

Rises and locks automatically, with pneumatic safety release.
Whole machine finished with powder coating.
Arm pivot sleeves fitted with self-lubricating bushings.

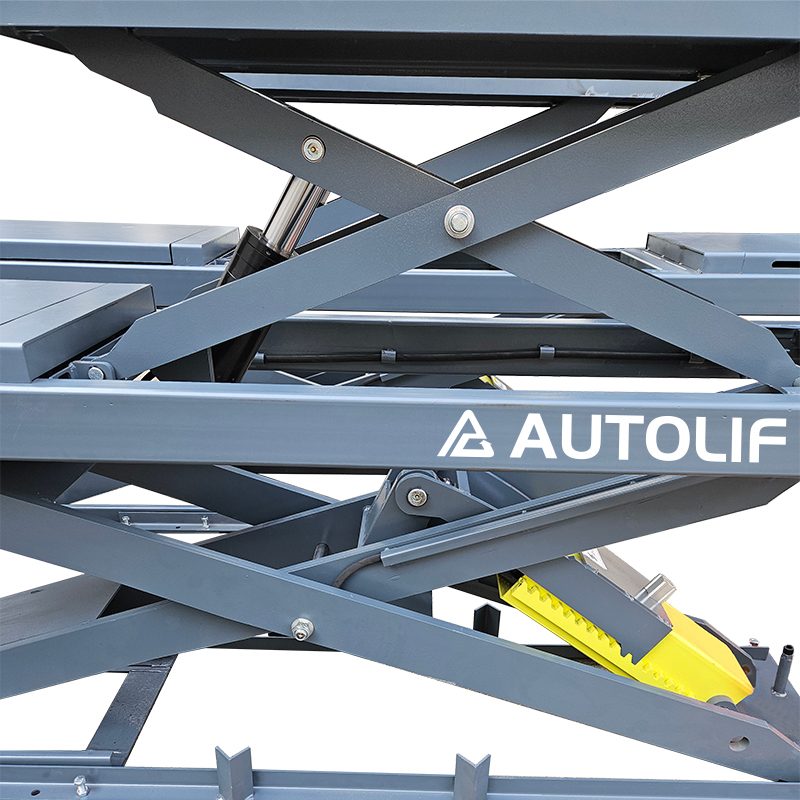

Scissor steel-plate arm structure for smooth, stable lifting.
| Rated load - main machine | 4,000 kg (8,800 lb) |
|---|---|
| Rated load - sub machine | 3,500 kg (7,700 lb) |
| Lifting height - main | 1,830 mm |
| Platform width - main | 620 mm |
| Platform length - main | 4,500 mm |
| Lifting height - sub | 450 mm |
| Platform length - sub | 1500 - 1,700 mm |
| Initial height | 200 mm |
| Lifting time | 55 s |
| Motor voltage | 220 / 380 V |
| Motor power | 2.2 kW (3 hp) |
Specifications are subject to change without notice. Contact us for the latest datasheet and certification documents.
