Rotary knob control with a rugged steel body — the workhorse chassis road simulator for daily suspension and NVH diagnosis.
Reply within 1 working day · OEM & ODM available
Verified under 4,000 kg (8,800 lb) and 4,800 kg (10,600 lb) wheel load for commercial shop use.
Two-stage motor, available in 50 Hz / 60 Hz and 220 V / 380 V.
Wheel fasteners made from hot-rolled steel plate — built to last.
Strong load-bearing height adjuster with high stability.
Moves easily around the bay — saves time and effort.
Bright display with manual and automatic mode selection.

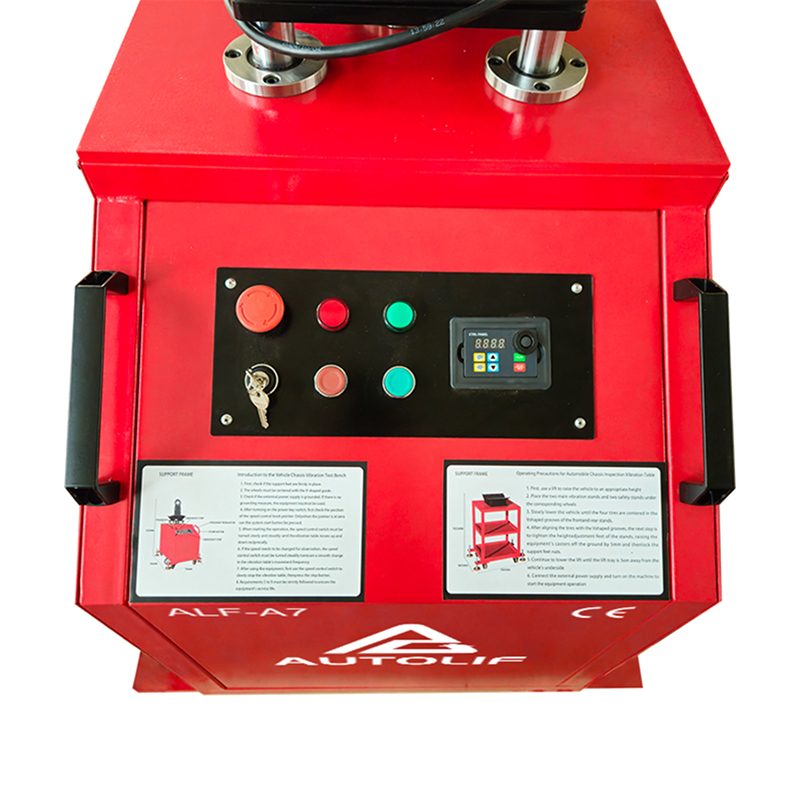

Rotary knob control panel.
| Product name | Rocking machine |
|---|---|
| Lifting weight | 4000 KG |
| Scope of activity | 0 - 20 mm |
| Vibration frequency | 0 - 200 /min |
| Speed regulation range | 0 - 50 Hz |
| Motor power | 2.2 kW (3 hp) |
| Input voltage | 220 / 380 V |
| Wooden box size (2 pcs) | 880 × 795 × 1,070 mm |
| Wooden box size (1 pc) | 1060 × 805 × 1,070 mm |
| Weight | 700 KG |
Specifications are subject to change without notice. Contact us for the latest datasheet and certification documents.
Tell us your quantity and destination port — we reply with price, lead time and shipping options within one working day.
